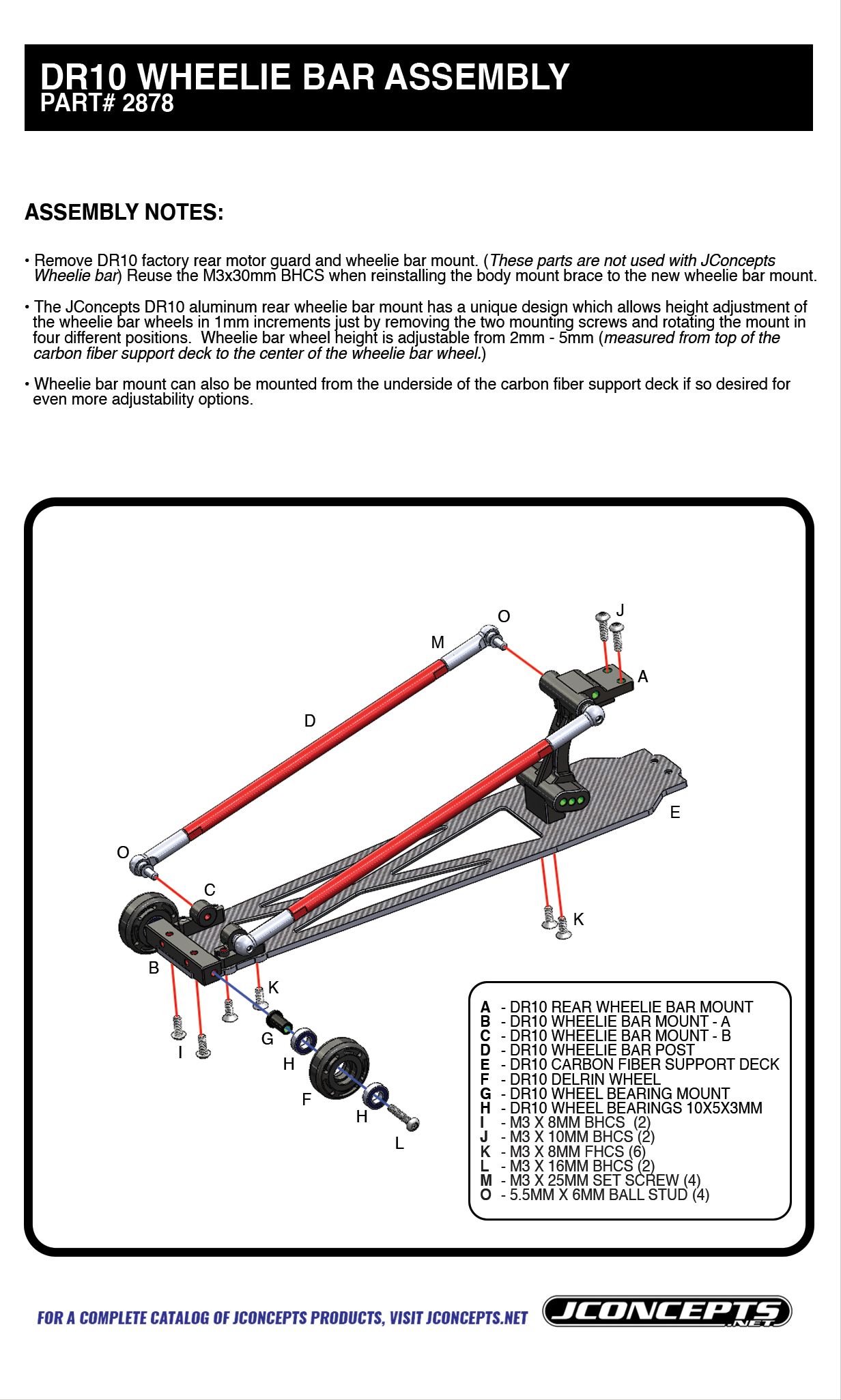

Remove DR10 factory rear motor guard and wheelie bar mount. (These parts are not used with JConcepts Wheelie bar) Reuse the M3x30mm BHCS when reinstalling the body mount brace to the new wheelie bar mount
The JConcepts DR10 aluminum rear wheelie bar mount has a unique design which allows height adjustment of the wheelie bar wheels in 1mm increments just by removing the two mounting screws and rotating the mount in four different positions. Wheelie bar wheel height is adjustable from 2mm - 5mm (measured from top of the carbon fiber support deck to the center of the wheelie bar wheel.)
Wheelie bar mount can also be mounted from the underside of the carbon fiber support deck if so desired for even more adjustability options.
